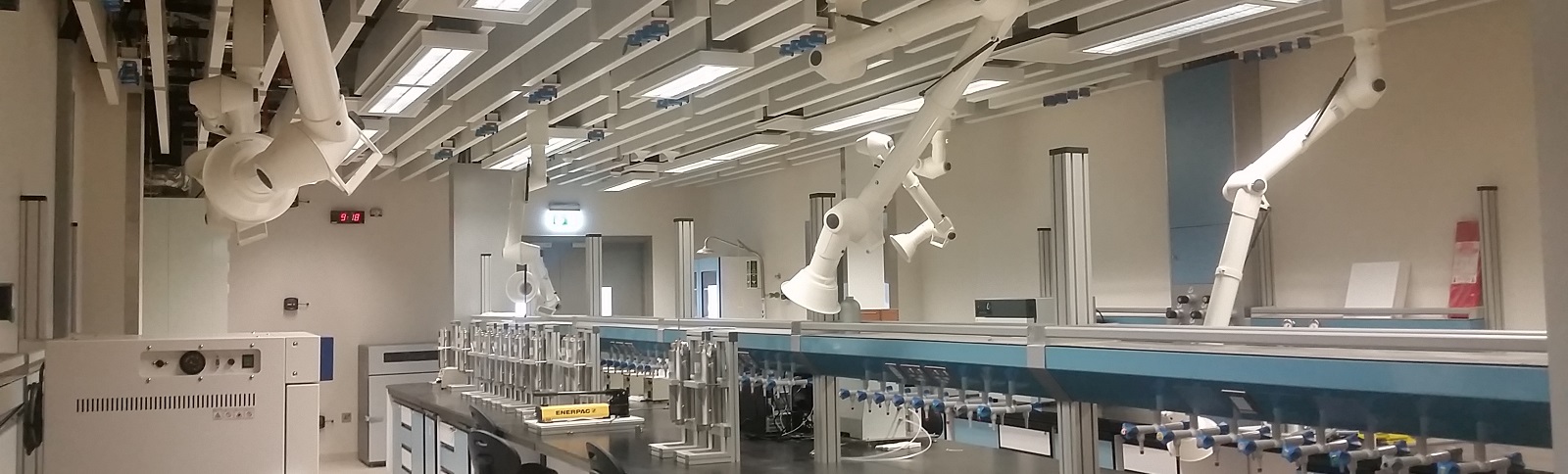

Petroleum Institute Research Center

The new 310,000-square-foot, five-story facility Petroleum Institute Research Center is the cornerstone of Abu Dhabi National Oil Company (ADNOC) strategic Research and Development program for the 21st Century. This multidisciplinary, collaborative research and development facility integrates classic engineering programs to solve issues specific to Abu Dhabi petroleum reserves.
Being a specialist in providing laboratory solutions, Climasys Controls was awarded the contract to Design & supply of multiple labs services; fume extract arms, MEP service Carries, Chemical resistance gas hoses & Chemical resistance flexible spiral cables.

Project Details

Project Title:
Petroleum Institute Research Center

Client:
Abu Dhabi National Oil Company “ADNOC”

Project Location:
Abu Dhabi – UAE

Consultant:
Jacobs International Holdings, Inc

Project Type:
Research Laboratories

Project Date:
2014-2015

Our Scope

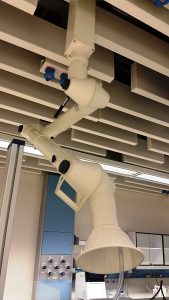

Fumex , Sweden : Fume Extract Arms
Design, customize & Build of 140 Fume Extract Arms for on-bench experiments extraction with heat resistant ventilation hoses. The full assembly has excellent chemical resistance for hydrogen sulfide

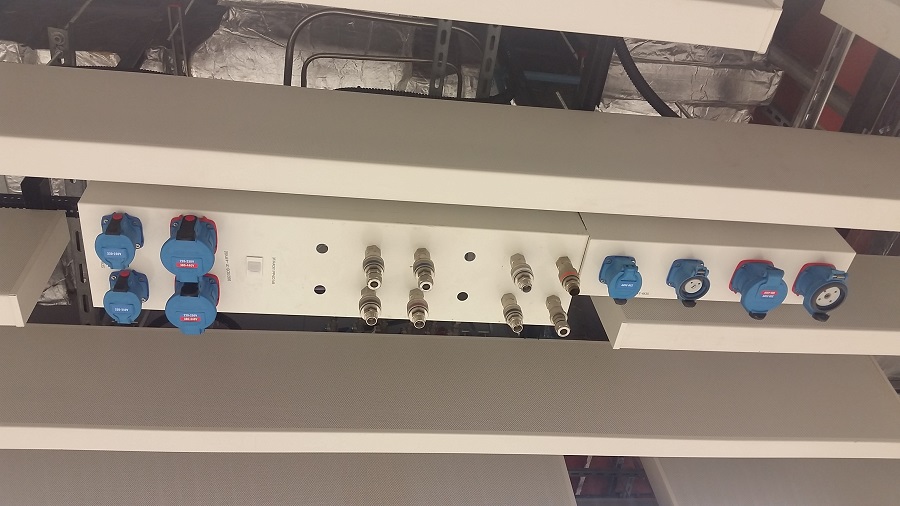

Design, assemble & supply of Custom Built Mechanical & Electrical (MEP) Service Carries

740 Service Carrier units were custom designed & built for both wall & ceiling mounted. Those units are used to accommodate different services.

Supplied Services

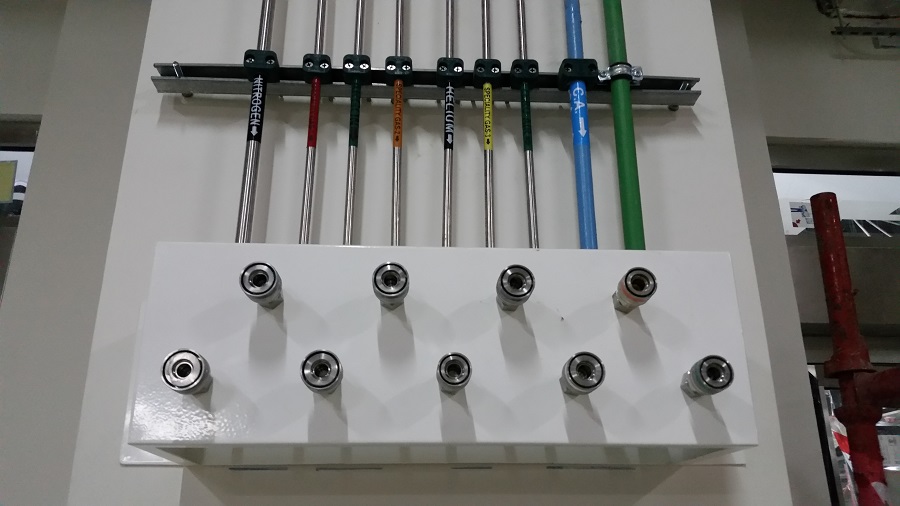

  • Gases Quick Disconnect manifold, by Swagelok – USA
  • Gas Tubes : Tubes from both Swagelok – USA & Freelin-Wade – USA were supplied to meet various laboratory requirements; pressure ,size, tube material , color code.
    The supplied gases through quick disconnect manifolds & tubes: Helium, Argon,O2,N2,Liquid Nitrogen & H2S.
  • Lockable Electrical Sockets & Plugs, Marechal – France : Industrial plugs and socket-outlets cover all electrical installations, even under the most extreme conditions. These connectors are waterproof, robust with a long life span. They guarantee the electrical safety of the users and the durability of the equipment.

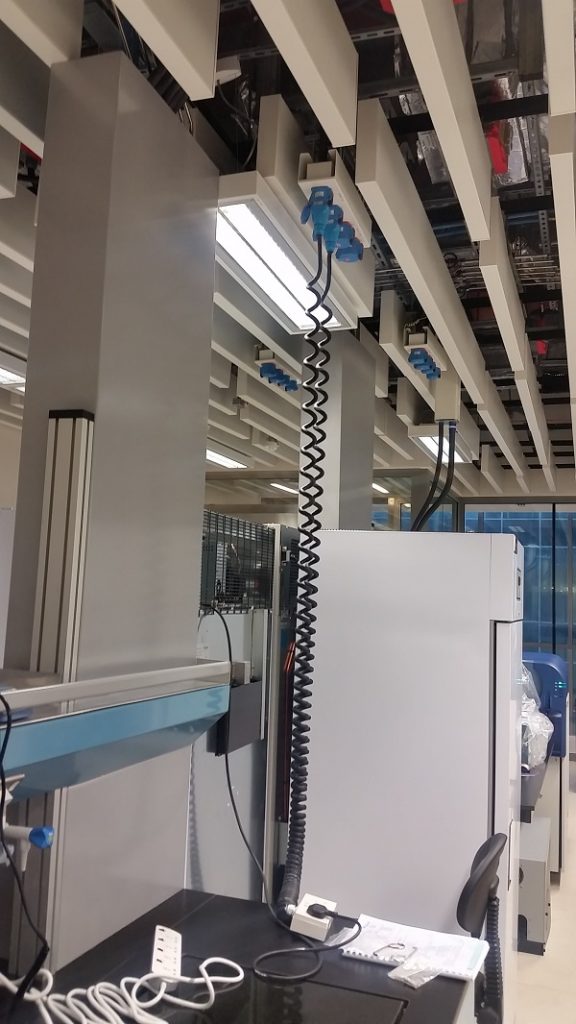

Design & supply Custom Built Retractable Flexible Spiral Cables– Lappsystems , Germany
Halogen free , Oil Resistant , UV Resistant with good chemical resistant cables; PUR Insulated “3X1.5mm2 ”& TPE-insulated “4X6mm2 ”cables , with extension lengths up to 3 times the un-extended spiral length.
