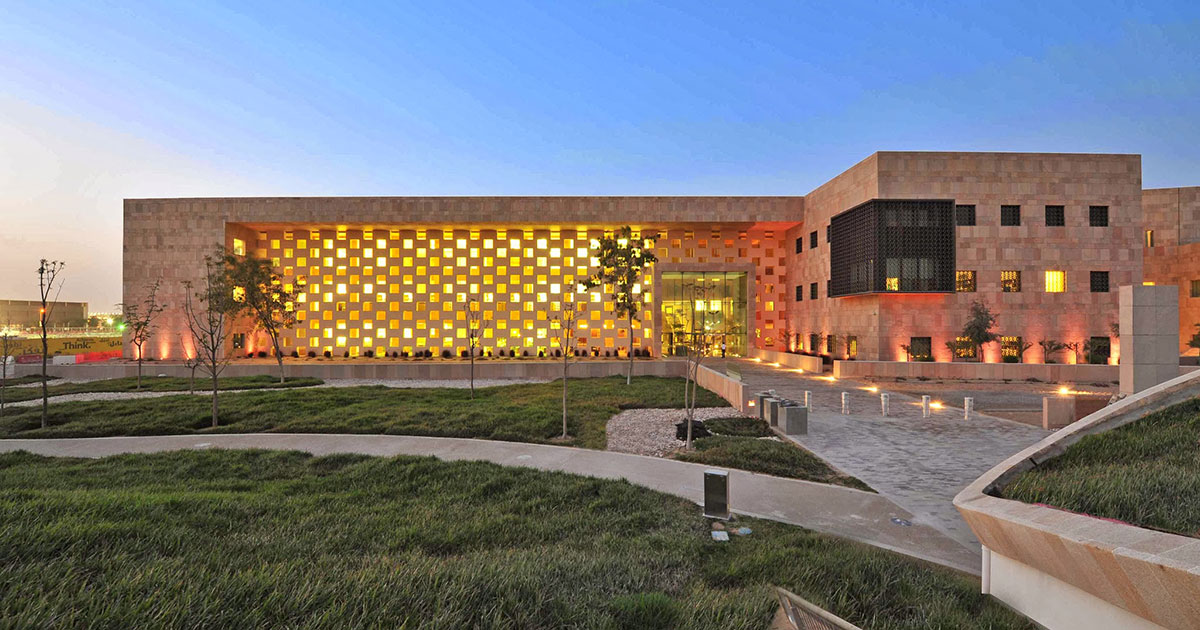

UCL-University College London

University College London is one of the world’s leading multi-disciplinary universities, its currently ranked the seventh in the world.
UCL, in partnership with Qatar Foundation created UCL Qatar, a leading center of excellence for higher education studies.
[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”2842″ img_size=”full”][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1518034053666{background-color: #eaeaea !important;}”][vc_column][vc_column_text]

Project Details

[/vc_column_text][vc_row_inner][vc_column_inner width=”1/3″][vc_column_text]Project Title:
University College London[/vc_column_text][vc_column_text]Client:
Qatar Foundation[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_column_text]Project Location:
Doha – Qatar[/vc_column_text][vc_column_text]Consultant:
Hyder Consulting[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_column_text]Project Type:
Research Laboratories[/vc_column_text][vc_column_text]Project Date:
2013[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Our Scope

[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]Design, Supply, Testing, Commissioning and Integration of the Laboratory Dilution & Exhaust System

The High plume fans system is designed to have high discharge velocities and dilution by inducing fresh air through a stack. A combination of Air volume and velocity contributes to a high plume exhaust while diluting hazardous exhaust concentrations. MK Plastics Axijet fans series is a great fit this purpose.

MK Plastics Axijet Design Features

  • AMCA certified for both Air & Sound
  • High efficiency.
  • Low radiated sound levels.
  • Greater airflow and high-pressure capabilities, with stable operation throughout the operating curve.
  • The Motor and drive components are placed outside the contaminated airstream (easy to maintain)

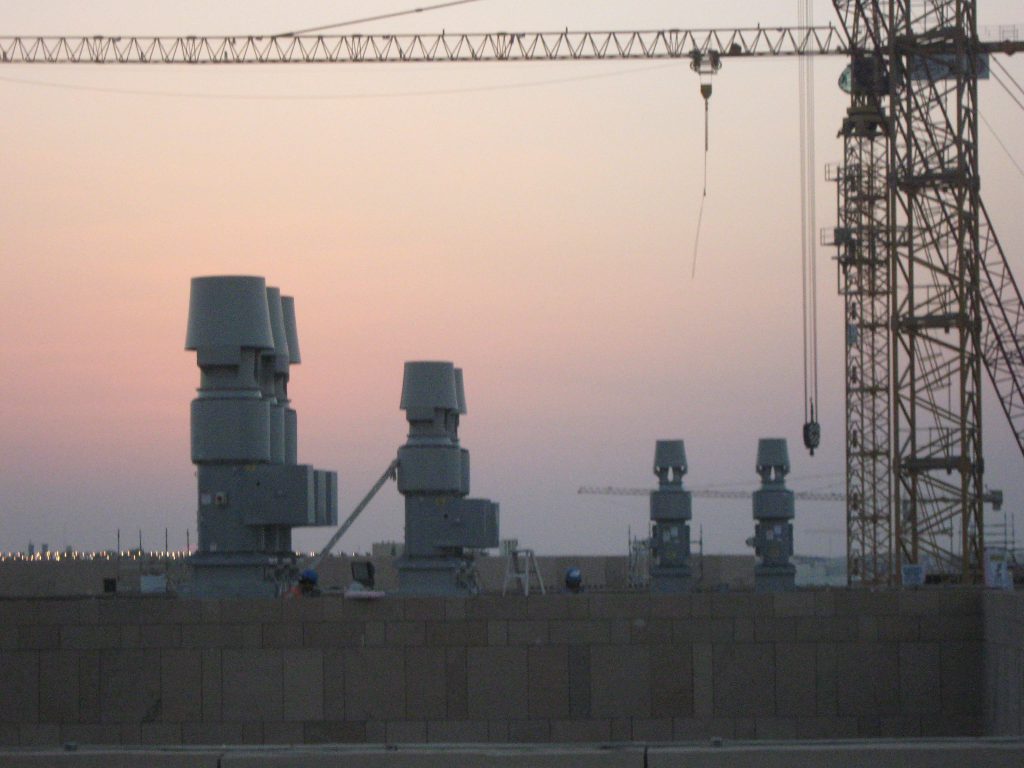

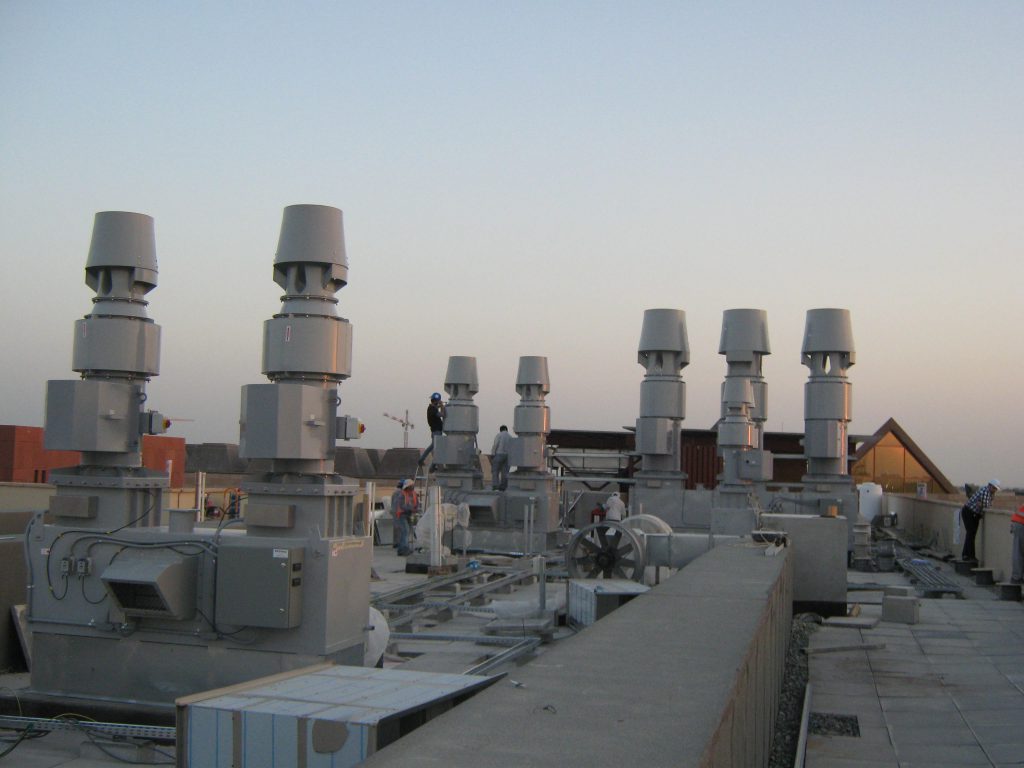

4 Fans Sets, each of a Duty/Standby arrangement were installed to extract the hazardous air from the building. Different sizes of fans sets were installed, to serve the various needs of the building sections.

A PLC based, Factory programmed & tested Lead-Lag Control Panel is used to control the operation of each fan set. The control system monitors &controls the fans speed, duty cycling, alarms, flow measurements & dampers operation to achieve the required operating conditions. All the system parameters are integrated to the Building Management System via BACnet/IP.

As a part of the complete solution, Climasys also supplied tested & commissioned all the MCC panels equipped with VFDs including the integration between the VFDs & the PLC via Profibus.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_single_image image=”3114″ img_size=”large” onclick=”link_image”][/vc_column][vc_column width=”1/2″][vc_single_image image=”3115″ img_size=”large” onclick=”link_image”][/vc_column][/vc_row]
